PWRB053 Datasheet - BOURNS

PWRB053 Power Wirewound Resistors

Chamber temp. 70 ±2 °C, voltage cycle: rated d.c. voltage application 1hr. 30 min. and rest of 30 min. repeatedly for 1K hrs. 0.25 W ~ 4 W: 5X rated power for 5 seconds 5 W ~ 10 W: 10X rated power for 5 seconds 4X power, 1 s. ON, 25 s. OFF, 10000 +400/-0 cycles Impact acceleration 100 g, pulse durat.

PWRB053 Features

* Superior pulse capability

* Very high power

* up to 10 W

* Excellent surge capabilities

* Super low TCR

* Non-inductive versions available

* UL 94V0, RoHS

* and SVHC compliant

* Halogen free model available Applications

* High power discharging applicati

PWRB053 Datasheet (285.47 KB)

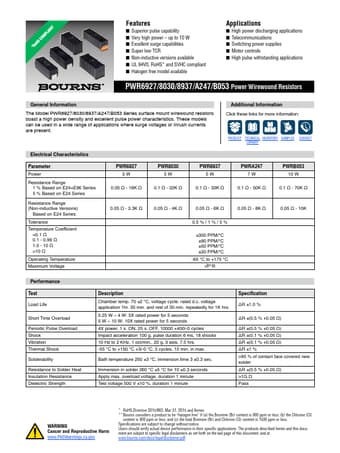

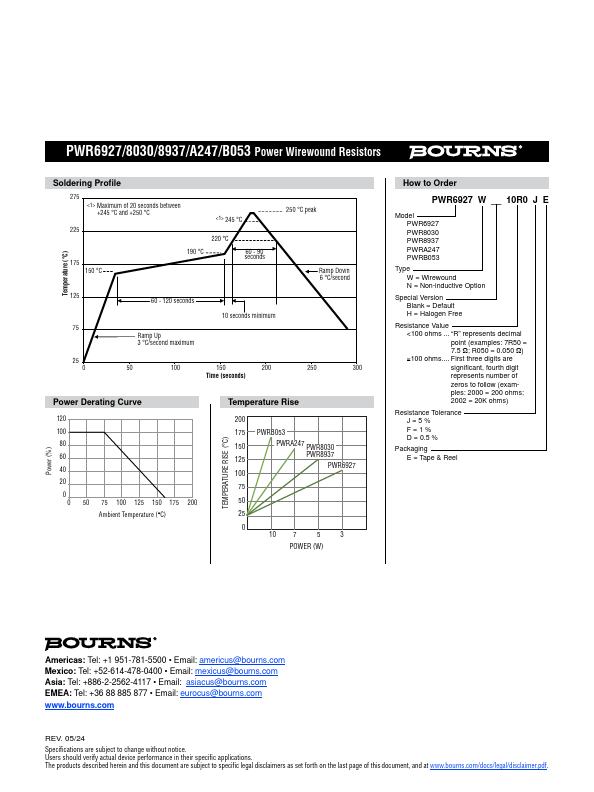

PWRB053 Datasheet Preview — Preview of PWRB053 PDF

Datasheet Details

Part number:

PWRB053

Manufacturer:

BOURNS

File Size:

285.47 KB

Description:

Power wirewound resistors.
