SF-0603FP050M-2 - Fast Acting Precision Surface Mount Fuses

BOURNS

Datasheet Details

Part number	SF-0603FP050M-2
Manufacturer	BOURNS
File Size	362.45 KB
Description	Fast Acting Precision Surface Mount Fuses

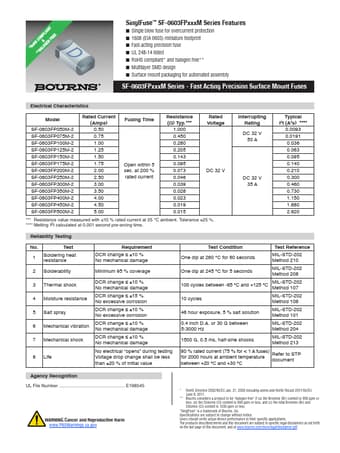

Datasheet	SF-0603FP050M-2-BOURNS.pdf

n Single blow fuse for overcurrent protection n 1608 (EIA 0603) miniature footprint n Fast-acting precision fuse n UL 248-14 listed n RoHS compliant.
and halogen free.
n Multilayer SMD design n Surface mount packaging for automated assembly SF-0603FPxxxM Series - Fast Acting Precision Surface Mount Fuses Electrical Characteristics Model SF-0603FP050M-2 SF-0603FP075M-2 SF-0603FP100M-2 Rated Current (Amps) 0.50 0.75 1.00 Fusing Time Resistance (Ω) Typ.
1.0.
