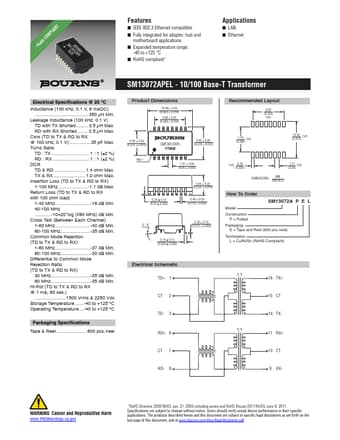

SM13072APEL
Features
- IEEE 802.3 Ethernet patible
- Fully integrated for adapter, hub and motherboard applications
- Expanded temperature range: -40 to +125 °C
- Ro HS pliant-
Applications
- LAN
- Ethernet
- 10/100 Base-T Transformer
Inductance (100 k Hz, 0.1 V, 8 m ADC) 350 μH Min.
Leakage Inductance (100 k Hz, 0.1 V) TD with TX Shorted 0.5 μH Max. RD with RX Shorted 0.5 μH Max.
Cww (TD to TX & RD to RX @ 100 k Hz, 0.1 V) 35 p F Max. Turns Ratio
TD : TX 1 : 1 (±2 %) RD : RX 1 : 1 (±2 %) DCR TD & RD 1.4 ohm Max. TX & RX 1.0 ohm Max. Insertion Loss (TD to TX & RD to RX) 1-100 MHz -1.1 d B Max. Return Loss (TD to TX & RD to RX with 100 ohm load) 1-40 MHz -16 d B Min. 40-100 MHz -10+20- log (f/80 MHz) d B Min. Cross Talk (Between Each Channel) 1-60 MHz...
