SMLJ15A-Q Datasheet - BOURNS

SMLJ15A-Q Transient Voltage Suppressor Diode

UL File Number: E153537 Electrical Characteristics (@ TA = 25 °C Unless Otherwise Noted) Parameter Symbol Value Minimum Peak Pulse Power Dissipation (TP = 1 ms) (Note 1,2) Peak Forward Surge Current 8.3 ms Single Half Sine Wave Superimposed on Rated Load (JEDEC Method) (Note 3) PPK IFSM 3000 .

SMLJ15A-Q Features

* Surface Mount SMC package

* Standoff Voltage: 12 to 58 volts

* Power Dissipation: 3000 watts

* RoHS compliant

* AEC-Q101 compliant

* Applications

* Protection of power buses

* Protection of I/O interfaces

* Overvoltage transient protection

* Entert

SMLJ15A-Q Datasheet (144.19 KB)

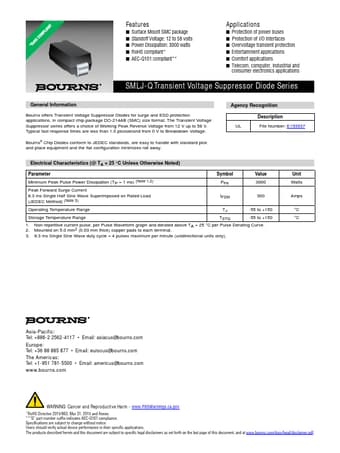

Preview of SMLJ15A-Q PDF
SMLJ15A-Q Datasheet Preview Page 2 SMLJ15A-Q Datasheet Preview Page 3

Datasheet Details

Part number:

SMLJ15A-Q

Manufacturer:

BOURNS

File Size:

144.19 KB

Description:

Transient voltage suppressor diode.
