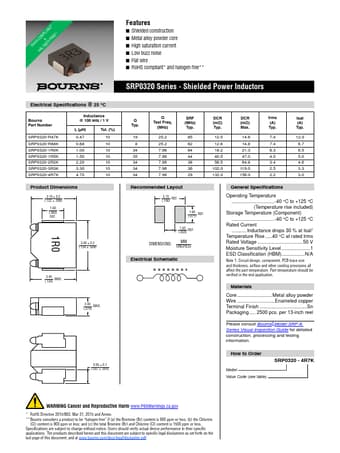

SRP0320 Datasheet Preview — Preview of SRP0320 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: SRP0320
Manufacturer: BOURNS
File Size: 217.08 KB
Datasheet: SRP0320-BOURNS.pdf
Description: Shielded Power Inductor

SRP0320 Product details

Features

Shielded construction.
Metal alloy powder core.
High saturation current.
Low buzz noise.
Flat wire.
RoHS compliant.
and halogen free.
SRP0320 Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part Number SRP0320-R47K SRP0320-R68K SRP0320-1R0K SRP0320-1R5K SRP0320-2R2K SRP0320-3R3K SRP0320-4R7K Inductance @ 100 kHz / 1 V L (μH) 0.47 0.68 1.00 1.50 2.20 3.30 4.70 Tol. (%) 10 10 10 10 10 10 10 Product Dimensions 3.10 ± 0.2.
