Part number:
SRP5030TA-R47M
Manufacturer:
BOURNS
File Size:
601.32 KB
Description:
Shielded power inductors.

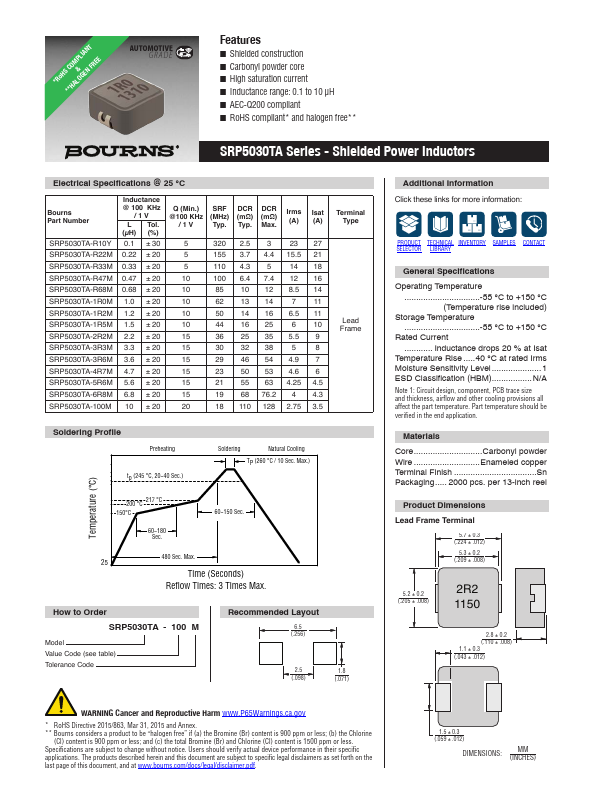

SRP5030TA-R47M Datasheet (601.32 KB)
Datasheet Details
SRP5030TA-R47M Features
* n Shielded construction n Carbonyl powder core n High saturation current n Inductance range: 0.1 to 10 µH n AEC-Q200 compliant n RoHS compliant
* and halogen free
* SRP5030TA Series - Shielded Power Inductors Electrical Specifications @ 25 °C Bourns Part Number Inductance @ 100 KHz /1
SRP5030TA-R47M Datasheet (601.32 KB)
Datasheet Details
SRP5030TA-R47M
BOURNS
601.32 KB
Shielded power inductors.
