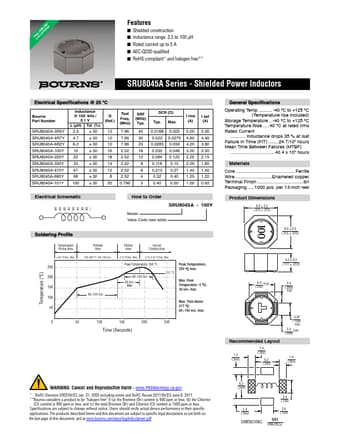

SRU8045A - Shielded Power Inductors

BOURNS

Datasheet Details

Shielded construction.
Inductance range: 3.5 to 100 µH 3 3 0.
Rated current up to 5 A.
AEC-Q200 qualiﬁed.
RoHS compliant.
and halogen free.
SRU8045A Series - Shielded Power Inductors Bourns Part Number SRU8045A-3R5Y SRU8045A-4R7Y SRU8045A-6R2Y SRU8045A-100Y SRU8045A-220Y SRU8045A-330Y SRU8045A-470Y SRU8045A-680Y SRU8045A-101Y Inductance @ 100 kHz / 0.1 V L (μH) Tol. (%) 3.5 ± 30 4.7 ± 30 6.2 ± 30 10 ± 30 22 ± 30 33 ± 30 47 ± 30 68 ± 30 100 ± 30 Q (Ref. ).
