TCS-DL004-250-WH

Dual Transient Current Suppressors

TCS-DL004-250-WH Features

* n High-speed performance n Superior overcurrent protection n Bidirectional n Low resistance n Excellent channel to channel resistance matching n Small SMT package n RoHS compliant

* and halogen free

* TCS-DL Series - TCS™ Dual Transient Current Suppressors General Information The Bour

TCS-DL004-250-WH Datasheet (679.65 KB)

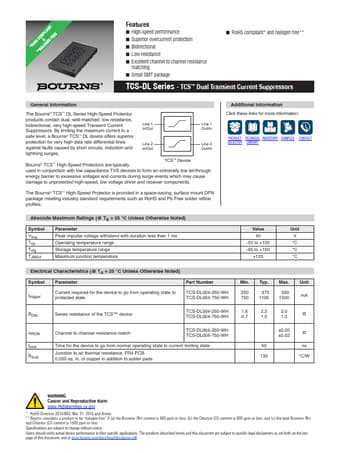

Preview of TCS-DL004-250-WH PDF

Datasheet Details

Part number:

TCS-DL004-250-WH

Manufacturer:

BOURNS

File Size:

679.65 KB

Description:

Dual transient current suppressors.
