TIC225 Datasheet - BOURNS

TIC225 SILICON TRIACS

TIC225 SERIES SILICON TRIACS Sensitive Gate Triacs 8 A RMS, 70 A Peak Glass Passivated Wafer 400 V to 800 V Off-State Voltage Max IGT of 5 mA (Quadrant 1) MT1 MT2 G TO-220 PACKAGE (TOP VIEW) 1 2 3 Pin 2 is in electrical contact with the mounting base. MDC2ACA absolute maximum ratings over operating case temperature (unless otherwise noted) RATING SYMBOL VALUE UNIT OBSOLETE TIC225D Repetitive peak off-state voltage (see Note 1) TIC225M TIC225S TIC225N F.

TIC225 Datasheet (193.28 KB)

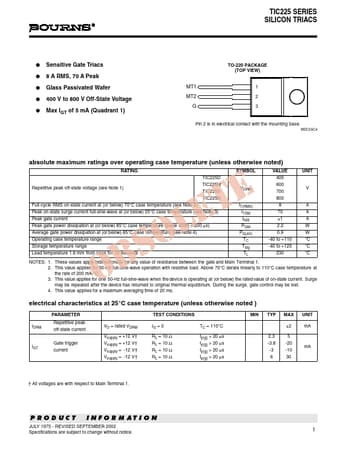

TIC225 Datasheet Preview — Preview of TIC225 PDF

Datasheet Details

Part number:

TIC225

Manufacturer:

BOURNS

File Size:

193.28 KB

Description:

Silicon triacs.
