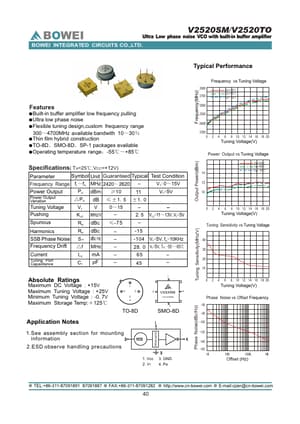

BOWEI
V2520SM/V2520TO
Ultra Low phase noise VCO with built-in buffer amplifier
BOWEI INTEGRATED CIRCUITS CO.,LTD.
Typical Performance
Features
●Built-in buffer amplifier low frequency pulling ●Ultra low phase noise ●Flexible tuning design,custom frequency range
300～4700MHz available bandwith 10～30％ ●Thin film hybrid construction ●TO-8D、SMO-8D、SP-1 packages available ●Operating temperature range：-55℃～+85℃
Specifications( TA=25℃,VCC=+12V)
Parameter
Symbol Unit Guaranteed Typical Test Condition
Frequency Range fL～fH MHz 2420～2620 –
VT:0～15V
Power Output
Power Output Variation
PO dBm ≥10
11
△PO dB ≤ ±1. 5 ±1. 0
VT=5V
Tuning Voltage
VT V 0～15
–
–
Pushing
KVC MHz/V
–
2.
V2520SM Datasheet
