BP2326A Non-isolated Buck APFC Offline LED Driver

BP2326A Description

BP2326A Non-isolated Buck APFC Offline LED Driver .
The BP2326A is a high precision non-isolated buck driver with active PFC, specially designed for universal input offline constant current LED lighting.

BP2326A Features

* Active PFC for High Power Factor and Low THD
* Internal 500V Power MOSFET
* System Efficiency up to 95%
* ±3% LED Output Current Accuracy
* Excellent Line and Load Regulation
* Critical Conduction Mode Operation
* Ultra Low (33uA) Start Up Current
* Ultra Low (300uA

BP2326A Applications

* GU10/E27 LED Bulb, Spot Light
* PAR30, PAR38 Lamp
* T8/T10 LED String
* Other LED Lighting Typical Application BP2326A 5 DRAIN FB 4 6 DRAIN CS 8 3 VCC CS 7 1 COMP GND 2 AC Figure 1. Typical application circuit for BP2326A BP2326A_EN _DS_Rev.1.0 www. bpsemi. com 1 Brigh

📥 Download Datasheet

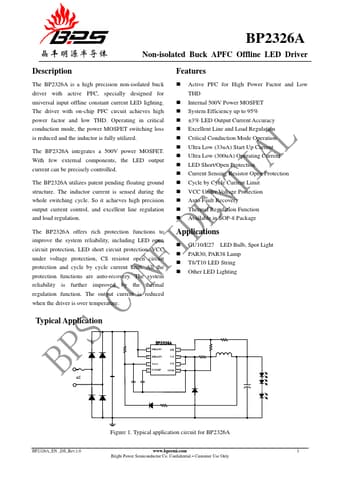

Preview of BP2326A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BP2326A
Manufacturer
BPS
File Size
342.35 KB
Datasheet
BP2326A-BPS.pdf
Description
Non-isolated Buck APFC Offline LED Driver
