BP2616C Datasheet - BPS

Boost PFC CC LED Driver

BP2616C Features

* Internal compensation for close loop control

* Critical conduction mode operation

* Internal 600V JFET power supply, no VCC capacitor

* ±5% LED output current accuracy

* Accurate LED open protection

* RTH for adjustable thermal regulation

* Available in SOP-8 package Ap

BP2616C General Description

The BP2616C is a high efficiency and high PF LED driver. The device operates in critical conduction mode and is suitable for universal input Boost LED driver. The BP2616C utilizes advanced MOSFET gate driving technique and HV power supply. With very few external components, it can achieve excellent .

BP2616C Datasheet (138.97 KB)

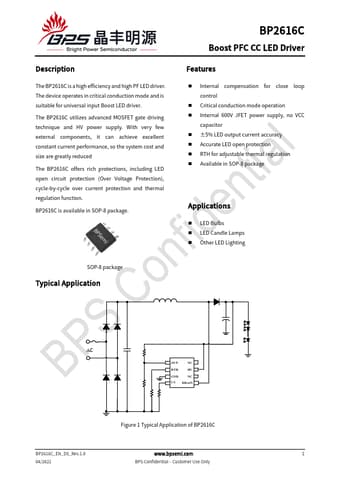

BP2616C Datasheet Preview — Preview of BP2616C PDF

Datasheet Details

Part number:

BP2616C

Manufacturer:

BPS

File Size:

138.97 KB

Description:

Boost pfc cc led driver.
