BP3108 - PSR LED Controller

BPS

📥 Download Datasheet

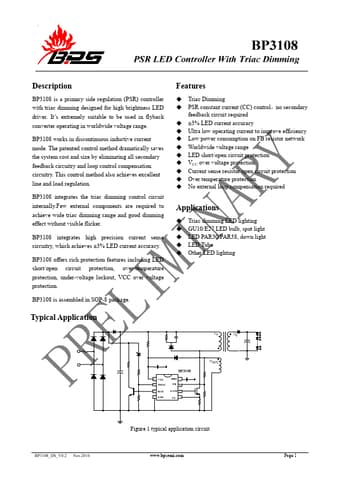

BP3108 Datasheet Preview — Preview of BP3108 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: BP3108
Manufacturer: BPS
File Size: 3.34 MB
Datasheet: BP3108-BPS.pdf
Description: PSR LED Controller

BP3108 Product details

Description

BP3108 is a primary side regulation (PSR) controller with triac dimming designed for high brightness LED driver.

Features

including LED short/open circuit protection, over-temperature protection, under-voltage lockout, VCC over voltage protection. BP3108 is assembled in SOP-8 package. Features.
Triac Dimming.
PSR constant current (CC) control，no secondary feedback circuit required.
±3% LED current accuracy.
Ultra low operating current to improve efficiency.
Low power consumption on FB resistor network.
Worldwide voltage range.
LED short/open circuit protection.
VCC over volt.
