BP3136D - High Precision PSR Constant Current LED Driver

BPS

📥 Download Datasheet

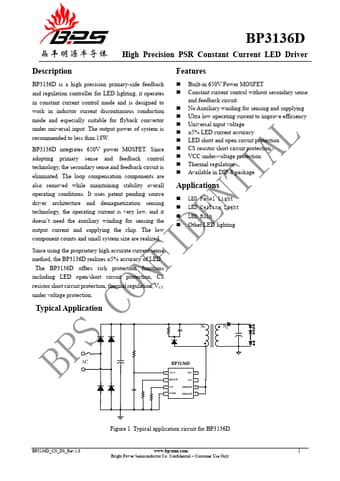

BP3136D Datasheet Preview — Preview of BP3136D PDF

Datasheet Details

Part number: BP3136D
Manufacturer: BPS
File Size: 481.89 KB
Datasheet: BP3136D-BPS.pdf
Description: High Precision PSR Constant Current LED Driver

BP3136D Product details

Description

BP3136D is a high precision primary-side feedback and regulation controller for LED lighting, it operates in constant current control mode and is designed to work in inductor current discontinuous conduction mode and especially suitable for flyback convertor under universal input.

Features

Built-in 650V Power MOSFET.
Constant current control without secondary sense and feedback circuit.
No Auxiliary winding for sensing and supplying.
Ultra low operating current to improve efficiency.
Universal input voltage.
±5% LED current accuracy.
LED short and open circuit protection.
CS resistor short circuit protection.
VCC under-voltage protection.
Thermal regulation.
Available in DIP-8 package.
