BP5178GCL

TRIAC Dimmable Single String LED Driver

BP5178GCL Features

* Simple BOM, small size

* Excellent dimming performance

* PF>0.7

* Integrated with 350V HV MOS

* Good line regulation

* Fast startup

* ±5% LED output current consistency

* LED current set by external resistors

* Adjustable IC internal thermal regulation

* ESO

BP5178GCL General Description

BP5178GCL is a high current and high precision TRIAC dimmable Linear LED Driver,integrated with High Voltage regulation MOSFET and JFET supply, specially designed for AC line LED strings forwarded with high voltage and low current. In application, it complies with EMI and safety standard with no Mag.

BP5178GCL Datasheet (570.10 KB)

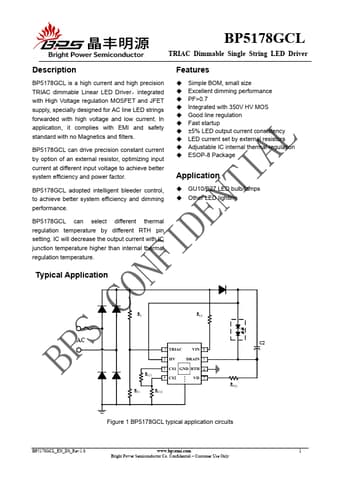

Preview of BP5178GCL PDF

Datasheet Details

Part number:

BP5178GCL

Manufacturer:

BPS

File Size:

570.10 KB

Description:

Triac dimmable single string led driver.
