BP5609 Datasheet - BPS

LED CURRENT RIPPLE REMOVER

BP5609 Features

* High Efficiency

* Adapt to All Kinds of Single Stage APFC LED Driver

* Simple Circuit

* No Magnetic Components

* Wide Range LED Voltage

* Wide Range LED Current

* VCC Under Voltage Protection

* Over Temperature Protection

* Available in SOT23-6 Package Applicati

BP5609 General Description

The BP5609 is a LED current ripple remover, working with single-stage active PFC LED driver to remove the low frequency LED current ripple and the low frequency flicker. The BP5609 utilizes patented high efficiency control scheme. It can automatically adapt to wide range LED voltage and current, rem.

BP5609 Datasheet (373.88 KB)

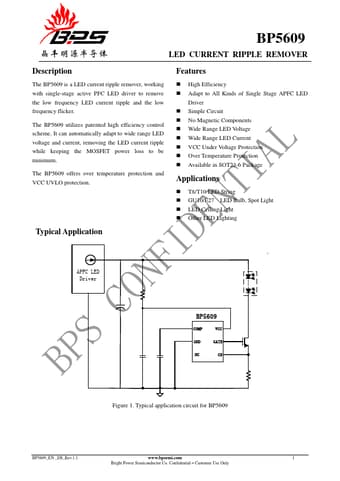

Preview of BP5609 PDF

Datasheet Details

Part number:

BP5609

Manufacturer:

BPS

File Size:

373.88 KB

Description:

Led current ripple remover.
