BP9022A, High Precision PSR Constant Current LED Driver

BP9022A High Precision PSR Constant Current LED Driver .
The BP9022A is a high precision primary-side feedback and regulation controller for LED lighting, it operates in constant current control mode and is.

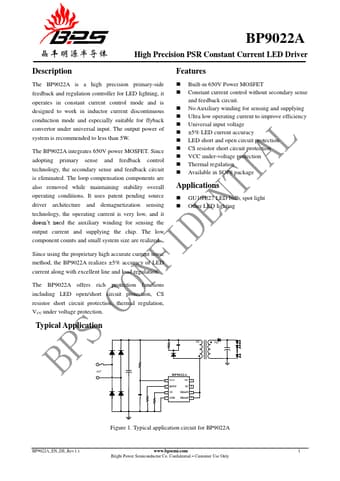

datasheet Preview Page 1 from Datasheet4u.com

BP9022A_BPS.pdf

BP9022A Datasheet Preview — Preview of BP9022A PDF

Datasheet Details

Part number:

BP9022A

Manufacturer:

BPS

File Size:

440.46 KB

Description:

High Precision PSR Constant Current LED Driver

Features

* Built-in 650V Power MOSFET
* Constant current control without secondary sense and feedback circuit.
* No Auxiliary winding for sensing and supplying
* Ultra low operating current to improve efficiency
* Universal input voltage
* ±5% LED current accuracy
* LED short and

Applications

* GU10/E27 LED bulb, spot light
* Other LED lighting NP NS AC BP9022A 2 VCC NC 5 4 ROVP NC 6 1 CS DRAIN 7 3 GND DRAIN 8 Figure 1. Typical application circuit for BP9022A BP9022A_EN_DS_Rev.1.1 www. bpsemi. com 1 Bright Power Semiconductor Co. Confidential
* Customer Use O
