BS-C53DRD - digit segments display

Datasheet Summary

Description

The BS-C53DRD is a 13.2mm(0.52") high single digit seven segments display.

This product use super red chips, which are made from AlGaAs on GaAs substrate.

7.00(.276) 3.0(.118)MIN.

Features

  • : 0.52 inch (13.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.
  • Package Dimensions : 7.60(.299) 10 13.20(.520) 17.50(.689) 15.24(.600) 12.40(.488) 1.5(.059) 1.0(.039).
  • 1. 2.

📥 Download Datasheet

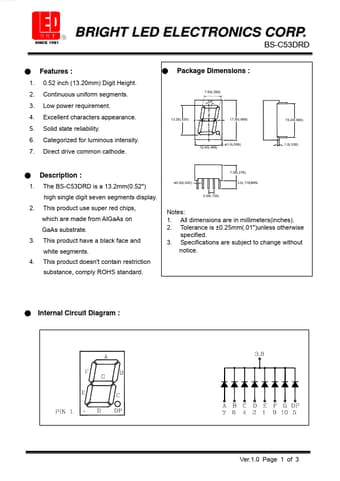

Datasheet preview – BS-C53DRD

Datasheet Details

Part number BS-C53DRD
Manufacturer BRIGHT LED ELECTRONICS
File Size 159.23 KB
Description digit segments display
Datasheet download datasheet BS-C53DRD Datasheet
