BT-C404ND - three digit seven segments display

Datasheet Summary

Description

The BT-C404ND is a 10.20 mm (0.40") high three digit seven segments display.

This product use hi-eff red chips, which are made from GaAsP on GaP substrate.

This product have a black face and white segments.

Features

  • : 0.40 inch (10.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.
  • Package Dimensions : 8 5.80(.228) 10.20(.402) 15.70(.618) 12.50(.492) 30.20(1.190) 1.3(.051) 7.00(.276) 0.50(.020).
  • 1. 2. 3. 4.

📥 Download Datasheet

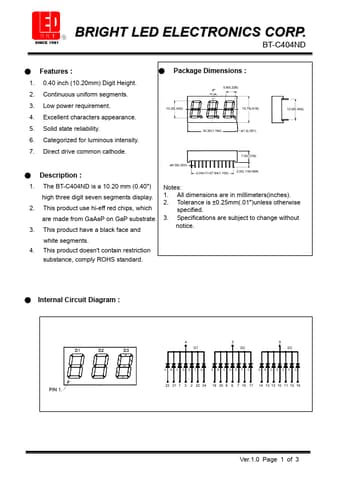

Datasheet preview – BT-C404ND

Datasheet Details

Part number BT-C404ND
Manufacturer BRIGHT LED ELECTRONICS
File Size 311.55 KB
Description three digit seven segments display
Datasheet download datasheet BT-C404ND Datasheet
Additional preview pages of the BT-C404ND datasheet.

📁 Similar Datasheet

Other Datasheets by BRIGHT LED ELECTRONICS

Full PDF Text Transcription

Click to expand full text
BRIGHT LED ELECTRONICS CORP. SINCE 1981 BT-C404ND ● 1. 2. 3. 4. 5. 6. 7. Features : 0.40 inch (10.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode. ● Package Dimensions : 8 5.80(.228) 10.20(.402) 15.70(.618) 12.50(.492) 30.20(1.190) 1.3(.051) 7.00(.276) 0.50(.020) ● 1. 2. 3. 4. Description : The BT-C404ND is a 10.20 mm (0.40") high three digit seven segments display. This product use hi-eff red chips, which are made from GaAsP on GaP substrate. This product have a black face and white segments. This product doesn't contain restriction substance, comply ROHS standard. www.DataSheet.co.kr 2.54x11=27.94(1.100) 3.00(.118) MIN.
