BT-C512RD

three digit seven segments display

BT-C512RD Features

* : 0.56 inch (14.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.

* Package Dimensions : 37.50(1.476) 8.10(.319) 8 14.20(.560) 18.90(.744) 15.24(.

BT-C512RD General Description

: The BT-C512RD is a 14.20 mm (0.56") high three digit seven segments display. This product use green chips, which are made from GaP on GaP substrate. This product have a black face and white segments. 2.54x13=33.02(1.300) 3.00(.118) MIN. Notes: 1. All dimensions are in millimeters(inches). 2. To.

BT-C512RD Datasheet (326.85 KB)

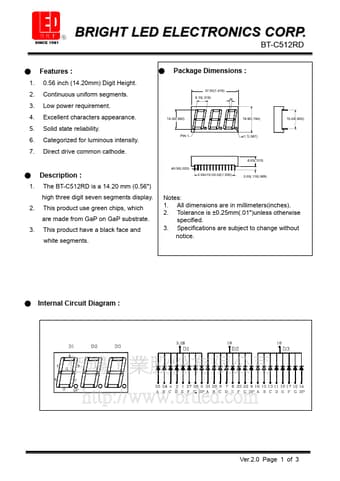

Preview of BT-C512RD PDF

Datasheet Details

Part number:

BT-C512RD

Manufacturer:

BRIGHT LED ELECTRONICS

File Size:

326.85 KB

Description:

Three digit seven segments display.
