BT-C535RD - three digit seven segments display

Datasheet Summary

Description

The BT-C535RD is a 13.2 mm (0.52") high three digit seven segments display.

This product use bright red chips, which are made from GaP on GaP substrate.

This product have a black face and white segments.

Features

  • : 0.52 inch (13.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode.
  • Package Dimensions : 7.6(.299) 8 13.20(.520) 17.40(.685) 15.10(.594) 12.7x2=25.4(1.00) 37.7(1.484) 1.6(.063) 0.9(.035) 6.9(.272) 0.50(.020) 2.5x14=35.0(1.380) 3.00(.118) MIN.
  • 1. 2. 3. 4.

📥 Download Datasheet

Datasheet preview – BT-C535RD

Datasheet Details

Part number BT-C535RD
Manufacturer BRIGHT LED ELECTRONICS
File Size 242.29 KB
Description three digit seven segments display
Datasheet download datasheet BT-C535RD Datasheet
Additional preview pages of the BT-C535RD datasheet.

📁 Similar Datasheet

Other Datasheets by BRIGHT LED ELECTRONICS

Full PDF Text Transcription

Click to expand full text

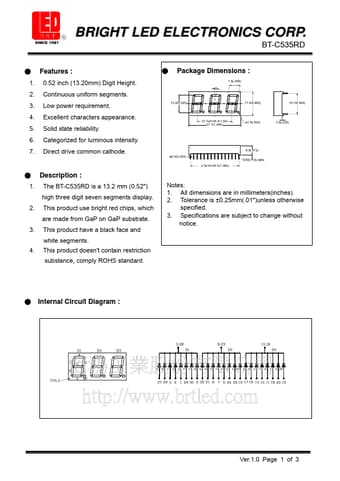

BRIGHT LED ELECTRONICS CORP. SINCE 1981 BT-C535RD ● 1. 2. 3. 4. 5. 6. 7. Features : 0.52 inch (13.20mm) Digit Height. Continuous uniform segments. Low power requirement. Excellent characters appearance. Solid state reliability. Categorized for luminous intensity. Direct drive common cathode. ● Package Dimensions : 7.6(.299) 8 13.20(.520) 17.40(.685) 15.10(.594) 12.7x2=25.4(1.00) 37.7(1.484) 1.6(.063) 0.9(.035) 6.9(.272) 0.50(.020) 2.5x14=35.0(1.380) 3.00(.118) MIN. ● 1. 2. 3. 4. Description : The BT-C535RD is a 13.2 mm (0.52") high three digit seven segments display. This product use bright red chips, which are made from GaP on GaP substrate. This product have a black face and white segments. This product doesn't contain restriction substance, comply ROHS standard. www.
