BES-516-356-S4-W Datasheet - Balluff

BES-516-356-S4-W Inductive Sensors

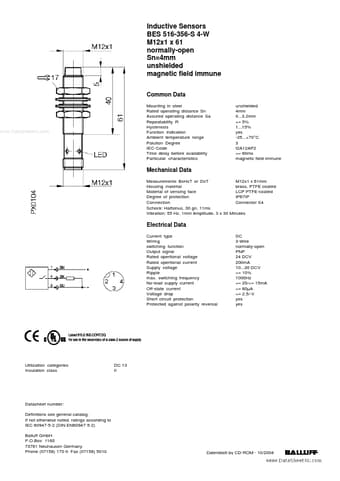

Inductive Sensors BES 516-356-S 4-W M12x1 x 61 normally-open Sn=4mm unshielded magnetic field immune Common Data Mounting in steel Rated operating distance Sn Assured operating distance Sa Repeatability R Hysteresis Function indication Ambient temperature range Polution Degree IEC-Code Time delay before availability Particular characteristics unshielded 4mm 03.2mm <= 5% 115% yes -25+70°C 3 I2A12AP2 <= 60ms magnetic field immune www.DataSheet4U.com Mechanical Data Measurements BxHxT or DxT M12x.

BES-516-356-S4-W_Balluff.pdf

BES-516-356-S4-W Datasheet Preview — Preview of BES-516-356-S4-W PDF

Datasheet Details

Part number:

BES-516-356-S4-W

Manufacturer:

Balluff

File Size:

69.89 KB

Description:

Inductive sensors.
