IVU2PTB904, IVU2PTBX04 Sensor

IVU2PTB904 Description

iVu Plus BCRGen2 Series Sensor Datasheet iVu Plus Image Sensor With Integrated Display The iVu Plus BCR package consists of lighting, sensor, lens, an.
Output 1 10-30V dc Output 2 Strobe Out (5V dc only) Remote Teach External Trigger Common (Signal Ground) Ready Output 3 RS-232 TX RS-232 Signal Ground.

IVU2PTB904 Features

* No PC required to configure the sensor
* Image processing expertise is not required
* Multiple inspections that facilitate storing and controlling up to 30 inspections for fast product turnover
* USB port for uploading and downloading of inspections and log files fo

IVU2PTB904 Applications

* High speed processing
* Adjustable image resolution up to 752×480 pixels The iVu
* Plus BCR reads the following barcode types: DataMatrix (ECC 200) barcodes QR Code (QR and Micro QR) Linear barcodes: Code128, Code39, CODABAR, Interleaved 2 of 5, EAN13, E

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IVU2PTB904, IVU2PTBX04. Please refer to the document for exact specifications by model.

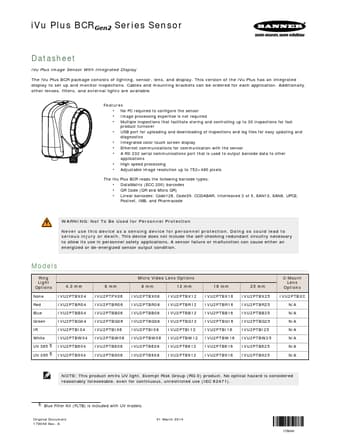

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IVU2PTB904, IVU2PTBX04
Manufacturer
Banner
File Size
725.83 KB
Datasheet
IVU2PTBX04-Banner.pdf
Description
Sensor
Note
This datasheet PDF includes multiple part numbers: IVU2PTB904, IVU2PTBX04.
Please refer to the document for exact specifications by model.
