Pt1000 - Cable Sensor

This page provides the datasheet information for the Pt1000, a member of the Pt100 Cable Sensor family.

Description

A platinum resistor is built into the temperature sensor.

Changes in temperature are reflected by changes in the electrical resistance, so that measuring the value of the resistance gives an analogue expression for the actual temperature.

📥 Download Datasheet

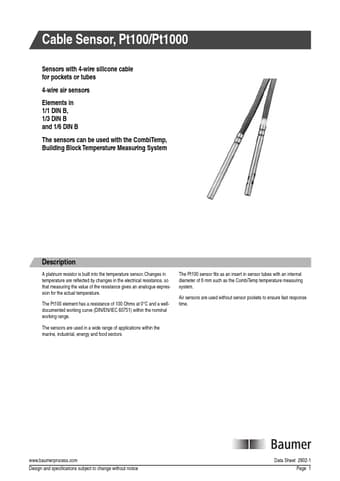

Datasheet preview – Pt1000

Datasheet Details

Part number Pt1000
Manufacturer Baumer
File Size 64.45 KB
Description Cable Sensor
Datasheet download datasheet Pt1000 Datasheet
Additional preview pages of the Pt1000 datasheet.

📁 Similar Datasheet

  • PT1000 - Power Toroids-Horizontal or Vertical Mount (API Delevan)
  • PT1000K - Multi-Standard Analog HD/SD Video Transmitter (Pixelplus)
  • PT100 - Platinum Resistance Temperature Detector (RHOPOINT COMPONENTS)
  • Pt100 - Platinum Sensing Resistors (LABFACILITY)
  • PT100-xxxx - Power Toroids / Horizontal or Vertical Mount (American Precision)
  • PT1005-LCF11 - 850nm 10 Gb/s PIN photodetector (OEpic)
  • PT100F - 8 Amperes Tab Terminals (Electronic Devices)
  • PT100KN16 - Diode (Nihon Inter Electronics)
  • PT100KN8 - Diode (Nihon Inter Electronics)
  • PT100MC0MP - Compact Phototransistor (Sharp)
Other Datasheets by Baumer

Full PDF Text Transcription

Click to expand full text
Cable Sensor, Pt100/Pt1000 Sensors with 4-wire silicone cable for pockets or tubes 4-wire air sensors Elements in 1/1 DIN B, 1/3 DIN B and 1/6 DIN B The sensors can be used with the CombiTemp, Building Block Temperature Measuring System Description A platinum resistor is built into the temperature sensor. Changes in temperature are reflected by changes in the electrical resistance, so that measuring the value of the resistance gives an analogue expression for the actual temperature. The Pt100 element has a resistance of 100 Ohms at 0°C and a welldocumented working curve (DIN/EN/IEC 60751) within the nominal working range. The sensors are used in a wide range of applications within the marine, industrial, energy and food sectors.
