LM78L10

(LM78Lxx) positive voltage regulator

LM78L10 Features

* Output Current of 100mA Output Voltage Tolerance of 5% Internal thermal overload protection Internal Short-Circuit Limited No External Component Output Voltage 5.0V, 6V, 8V, 9V, 10V, 12V, 15V, 18V, 24V Offer in plastic T

LM78L10 General Description

The Bay Linear LM78LXX is integrated linear positive regulator with three terminals. The LM78LXX offer several fixed output voltages making them useful in wide range of applications. When used as a zener diode/resistor combination replacement, the LM78LXX usually results in an effective output imped.

LM78L10 Datasheet (191.36 KB)

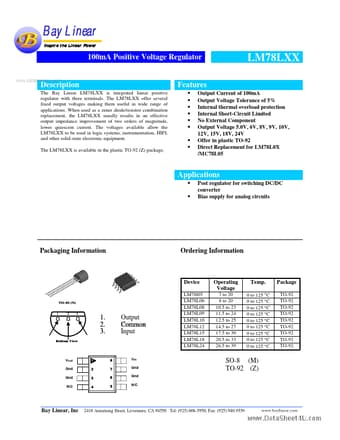

Preview of LM78L10 PDF

Datasheet Details

Part number:

LM78L10

Manufacturer:

Bay Linear

File Size:

191.36 KB

Description:

(lm78lxx) positive voltage regulator.
