B29150

1.5A High Current Low Dropout Voltage Regulator Adjustable & Fix Output

B29150 Features

* such as Enable pin, Error Flag pin are also included in the 5 pin packages. The B29150 is offer in a new LPDD (Low Profile TO-263) package from 4.47 mm (DD) tickness down to only 1.27 mm (LPDD) total tickness. The B29150 are offered in a 3 & 5-pin TO-220 & TO-263 package compatible with other 3 term

B29150 General Description

The Bay Linear B29150 is a 1.5A high accuracy, low dropout voltage regulator with only 350mV(Typ.)@ 1.5A). The B29150 is designed for low voltage a application that requires lower dropout voltage and faster transient response. This device is an excellent choice for use in powering low voltage microp.

B29150 Datasheet (89.09 KB)

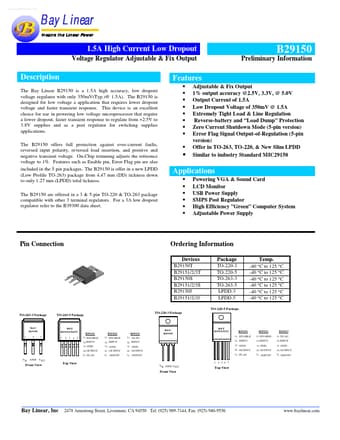

Preview of B29150 PDF

Datasheet Details

Part number:

B29150

Manufacturer:

Bay Lineer

File Size:

89.09 KB

Description:

1.5a high current low dropout voltage regulator adjustable & fix output.
www.DataSheet4U.com Bay Linear Inspire the Linear Power 1.5A High Current Low Dropout Voltage Regulator Adjustable & Fix Output B29150 Preliminary .
