SSA-005-2 Datasheet - Bedford Opto Technology

SSA-005-2 Miniature IR

These components are RoHS compliant Pb SSA-005-2 Miniature IR Array SSA-005-2 is an eight element array of silicon phototransistors or gallium arsenide infrared emitters in a polycarbonate housing. It is supplied with either wide angle flat-lensed or narrow angle components. All leads fit an 0.1” inch matrix. Very compact 8-element arrays with a double row of leads on an 0.1” matrix. End stackable. No dust traps to reduce opto performance. Smooth black .

SSA-005-2 Datasheet (92.09 KB)

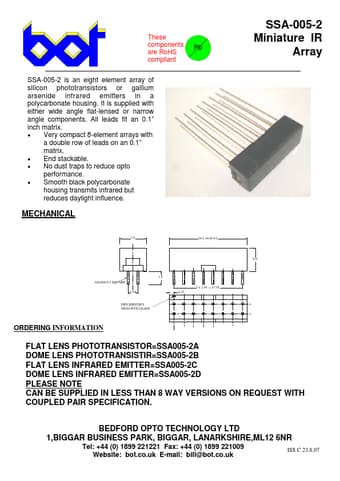

Preview of SSA-005-2 PDF
SSA-005-2 Datasheet Preview Page 2

Datasheet Details

Part number:

SSA-005-2

Manufacturer:

Bedford Opto Technology

File Size:

92.09 KB

Description:

Miniature ir.
