BK2423 - Low Power High Performance 2.4 GHz GFSK Transceiver

Beken

The BK2423 by Beken is a Low Power High Performance 2.4 GHz GFSK Transceiver. Below is the official datasheet preview.

📥 Download Datasheet

BK2423 Low Power High Performance 2.4 GHz GFSK Transceiver by Beken - Datasheet Preview — Official preview page of the **BK2423** Low Power High Performance 2.4 GHz GFSK Transceiver datasheet (Beken).

Datasheet Details

Part number	BK2423
Manufacturer	Beken
File Size	920.32 KB
Description	Low Power High Performance 2.4 GHz GFSK Transceiver
Datasheet	BK2423-Beken.pdf

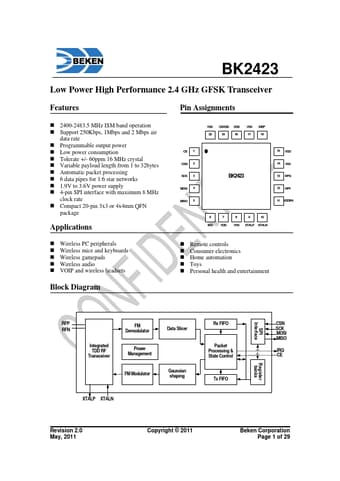

Additional preview pages of the BK2423 datasheet.

BK2423 Product details

Description

3 2 Abbreviations 4 3 Pin Information 5 4 State Control 6 4.1 State Control Diagram 6 4.2 Power Down Mode 7 4.3 Standby-I Mode 7 4.4 Standby-II Mode 7 4.5 TX Mode 7 4.6 RX Mode 8 5 Packet Processing 8 5.1 Packet Format 8 5.1.1 Preamble 9 5.1.2 Address 9 5.1.3 Packet Control 9 5.1.4 Payload 10 5.1.5 CRC 10 5.2 Packet Handling 10 6 Data and Control Interface 11 6.1 TX/RX FIFO 11 6.2 Interrupt 11 6.3 SPI Interface 12 6.3.1 SPI Command 12 6

Features

2400-2483.5 MHz ISM band operation.
Support 250Kbps, 1Mbps and 2 Mbps air data rate.
Programmable output power.
Low power consumption.
Tolerate +/- 60ppm 16 MHz crystal.
Variable payload length from 1 to 32bytes.
Automatic packet processing.
6 data pipes for 1:6 star networks.
1.9V to 3.6V power supply.
4-pin SPI interface with maximum 8 MHz clock rate.
Compact 20-pin 3x3 or 4x4mm QFN package Appl.
