SS-6108xx, SS-610808-xxx Datasheet - Bel Stewart Connector

SS-6108xx (SS-61 Series) Compu-Shield Modular jacks

.500 [12.70] .200 [5.08] .100 [2.54]Ø .128 [3.25]Ø .180 [4.57] A 1.090 [27.69] 1.210 [30.73] 1.310 [33.27] 1.540 [39.12] 2.080 [52.83] 6-position 8-position * 10-position 15-position 25-position *Shown .375 [9.53] .600 [15.24] .128 [3.25]Øx2 .100 [2.54]Øx2 .050 [1.27]x14 .045 [1.14]Øx15.
61 Series Variations Compu-shield Modular Jacks Shielded ® KEYING Footprint Configurations Six-Contact, Six-Position Shielded .025 [.635] Eight-Contact, Eight-Position Shielded A .096Ø HOLE TAP # 4-40 .805 [20.45] .370 [9.40] .100 [2.54] .050 [1.27]x5 .100 [2.54] .200 [5.08] .012x.025 [0.30x0.64] PH-BR CONTACTS: GOLD PLATED OVERALL .128 [3.25]Øx2 .350 [8.89] .180 [4.57] .100 [2.54]Ø .100 [2.54] Ten-Contact, Ten-Position Shielded .025 [0.64] .025 [.635] .050 [.127]x7 .10.

SS-610808-xxx_BelStewartConnector.pdf

This datasheet PDF includes multiple part numbers: SS-6108xx, SS-610808-xxx. Please refer to the document for exact specifications by model.

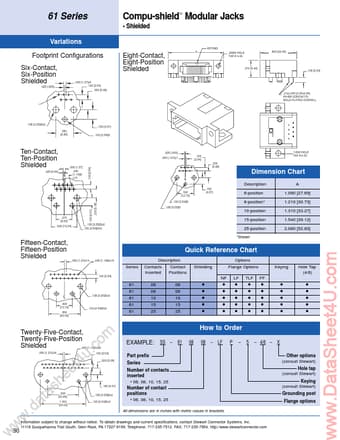

SS-6108xx Datasheet Preview Page 2

Datasheet Details

Part number:

SS-6108xx, SS-610808-xxx

Manufacturer:

Bel Stewart Connector

File Size:

100.79 KB

Description:

(ss-61 series) compu-shield modular jacks.

Note:

This datasheet PDF includes multiple part numbers: SS-6108xx, SS-610808-xxx.
Please refer to the document for exact specifications by model.
