0557-7700-26 - POWERLINE SIGNAL COUPLERS

This page provides the datasheet information for the 0557-7700-26, a member of the 0557-7700-31 POWERLINE SIGNAL COUPLERS family.

Datasheet Summary

Description

3 winding coupler for integrated wallplug 3 winding coupler for 6 ft AC line corded applications 4 winding coupler for 6 ft DC line corded applications 3 winding coupler for wall adapter for 6 ft DC corded applications 2 winding coupler for passive coax to Powerline bridge Boxed ___ Part Number Sl

Features

  • Designed for use with Intellon INT5500/INT1200 high speed Powerline chipset.
  • Fully compatible with Bel’s 0804-5000-08 and 0804-5000-09 Powerline modules.
  • Variants available for wallplug, desktop DC and AC power corded.

📥 Download Datasheet

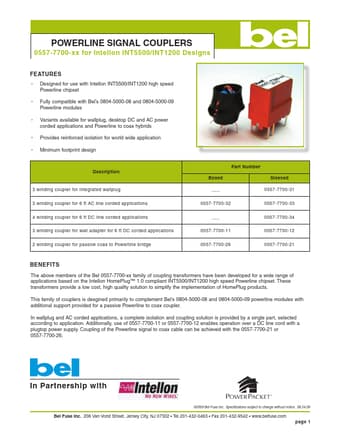

Datasheet preview – 0557-7700-26

Datasheet Details

Part number 0557-7700-26
Manufacturer Bel
File Size 345.88 KB
Description POWERLINE SIGNAL COUPLERS
Datasheet download datasheet 0557-7700-26 Datasheet
Additional preview pages of the 0557-7700-26 datasheet.

📁 Similar Datasheet

Other Datasheets by Bel

Full PDF Text Transcription

Click to expand full text
POWERLINE SIGNAL COUPLERS 0557-7700-xx for Intellon INT5500/INT1200 Designs FEATURES • Designed for use with Intellon INT5500/INT1200 high speed Powerline chipset • Fully compatible with Bel’s 0804-5000-08 and 0804-5000-09 Powerline modules • Variants available for wallplug, desktop DC and AC power corded applications and Powerline to coax hybrids • Provides reinforced isolation for world wide application • Minimum footprint design Description 3 winding coupler for integrated wallplug 3 winding coupler for 6 ft AC line corded applications 4 winding coupler for 6 ft DC line corded applications 3 winding coupler for wall adapter for 6 ft DC corded applications 2 winding coupler for passive coax to Powerline bridge Boxed ___ Part Number Sleeved 0557-7700-31 0557-7700-32 0557-7700-33 ___
