0557-7700-31

POWERLINE SIGNAL COUPLERS

0557-7700-31 Features

* Designed for use with Intellon INT5500/INT1200 high speed Powerline chipset

* Fully compatible with Bel’s 0804-5000-08 and 0804-5000-09 Powerline modules

* Variants available for wallplug, desktop DC and AC power corded applications and Powerline to coax hybrids

* P

0557-7700-31 General Description

3 winding coupler for integrated wallplug 3 winding coupler for 6 ft AC line corded applications 4 winding coupler for 6 ft DC line corded applications 3 winding coupler for wall adapter for 6 ft DC corded applications 2 winding coupler for passive coax to Powerline bridge Boxed ___ Part Number Sl.

0557-7700-31 Datasheet (345.88 KB)

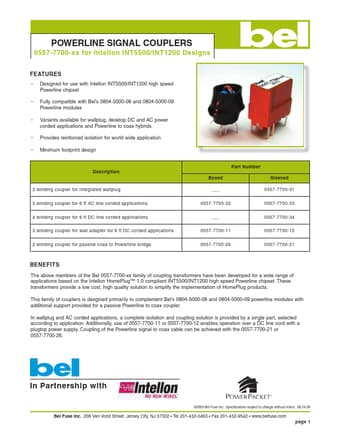

Preview of 0557-7700-31 PDF

Datasheet Details

Part number:

0557-7700-31

Manufacturer:

Bel

File Size:

345.88 KB

Description:

Powerline signal couplers.
