Q25D12-48 25-30W DC/DC Converter

The Q25 series is a 25-30W low noise isolated converter, consisting of 14 standard single & dual output models from 3.3VDC to 15 VDC and 4:1 input voltage range from 9V to 72V. Output synchronous rectification followed by a very low dropout linear regulator made possible to achieve up to 87% efficie.

Q25D12-48 Features

* Efficiency up to 87%

* Low output noise

* Six-sided shielding

* Output synchronous rectification

* Input-to-output isolation

* Soft start

* External synchronization

* Short circuit protection

* Thermal protection

Q25S3.3-24-BetaDyne.pdf

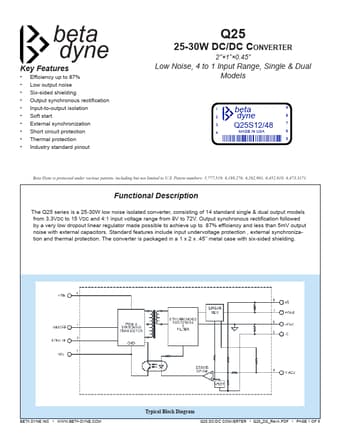

Q25D12-48 Datasheet Preview — This datasheet PDF includes multiple part numbers: Q25D12-48, Q25S3.3-24. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

Q25D12-48, Q25S3.3-24

Manufacturer:

Beta Dyne

File Size:

665.24 KB

Description:

25-30w dc/dc converter.

Note:

This datasheet PDF includes multiple part numbers: Q25D12-48, Q25S3.3-24.
Please refer to the document for exact specifications by model.
