0.1K1MBD1, 1K2MBD Datasheet - BetaTHERM

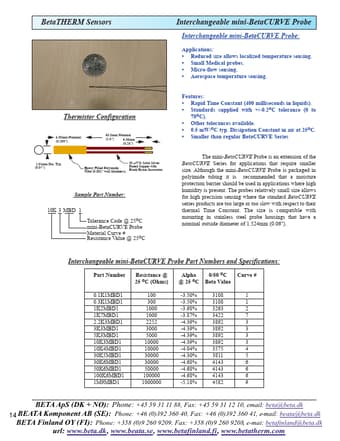

0.1K1MBD1 Interchangeable mini-BetaCURVE Probe

BetaTHERM Sensors Photo? Interchangeable mini-BetaCURVE Probe Interchangeable mini-BetaCURVE Probe: Applications: Reduced size allows localized temperature sensing. Small Medical probes. Micro-flow sensing. Aerospace temperature sensing. Thermistor Configuration 5.08mm Nominal (0.200") 50.8mm Nominal (2.0") 6.35mm (0.25") 1.01mm Dia. Typ. (0.04") 30 AWG Solid Silver Epoxy Filled Polyimide Tube (0.002" wall thickness) Plated Copper with Black Kynar Insulation S.

0.1K1MBD1 Features

* Rapid Time Constant (400 milliseconds in liquids).

* Standards supplied with +/-0.2oC tolerance (0 to 70oC).

* Other tolerances available.

* 0.5 mW/oC typ. Dissipation Constant in air at 25oC.

* Smaller than regular BetaCURVE Series The mini-BetaCURVE Probe is an extension of

1K2MBD-xx.pdf

0.1K1MBD1 Datasheet Preview — This datasheet PDF includes multiple part numbers: 0.1K1MBD1, 1K2MBD. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

0.1K1MBD1, 1K2MBD

Manufacturer:

BetaTHERM

File Size:

192.98 KB

Description:

Interchangeable mini-betacurve probe.

Note:

This datasheet PDF includes multiple part numbers: 0.1K1MBD1, 1K2MBD.
Please refer to the document for exact specifications by model.
