0.3K1MBD1 - Interchangeable mini-BetaCURVE Probe

Download the 0.3K1MBD1 datasheet PDF. This datasheet also covers the 1K2MBD variant, as both devices belong to the same interchangeable mini-betacurve probe family and are provided as variant models within a single manufacturer datasheet.

Features

  • Rapid Time Constant (400 milliseconds in liquids).
  • Standards supplied with +/-0.2oC tolerance (0 to 70oC).
  • Other tolerances available.
  • 0.5 mW/oC typ. Dissipation Constant in air at 25oC.
  • Smaller than regular BetaCURVE Series The mini-BetaCURVE Probe is an extension of the BetaCURVE Series for.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (1K2MBD-xx.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number 0.3K1MBD1
Manufacturer BetaTHERM
File Size 192.98 KB
Description Interchangeable mini-BetaCURVE Probe
Datasheet download datasheet 0.3K1MBD1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer

Other Datasheets by BetaTHERM

Part Number Description
0.3K1A1 Chip Thermistors
0.3K1A1-25 Chip Thermistors
0.3K1C2 Chip Thermistors
0.3K1C3 Chip Thermistors
0.3K1CG2 Chip Thermistors

Full PDF Text Transcription

Click to expand full text

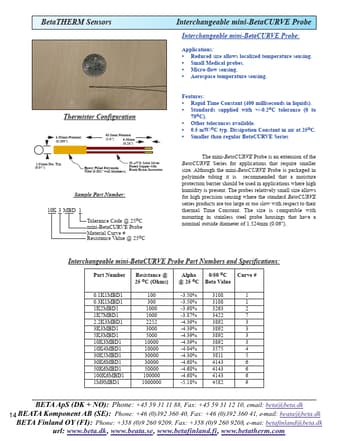

BetaTHERM Sensors Photo? Interchangeable mini-BetaCURVE Probe Interchangeable mini-BetaCURVE Probe: Applications: ¥ Reduced size allows localized temperature sensing. ¥ Small Medical probes. ¥ Micro-flow sensing. ¥ Aerospace temperature sensing. Thermistor Configuration 5.08mm Nominal (0.200") 50.8mm Nominal (2.0") 6.35mm (0.25") 1.01mm Dia. Typ. (0.04") 30 AWG Solid Silver Epoxy Filled Polyimide Tube (0.002" wall thickness) Plated Copper with Black Kynar Insulation Sample Part Number: 10K 3 MBD 1 Tolerance Code @ 25oC mini-BetaCURVE Probe Material Curve # Resistance Value @ 25oC Features: ¥ Rapid Time Constant (400 milliseconds in liquids). ¥ Standards supplied with +/-0.2oC tolerance (0 to 70oC). ¥ Other tolerances available. ¥ 0.5 mW/oC typ.
