100K6A1ID, 3K3A1IA Datasheet - BetaTHERM

100K6A1ID Chip Thermistors

BetaTHERM Sensors BetaCurve Interchangeable Thermistor Series II BetaCurve Interchangeable Thermistor Series II . Thermistor Configuration 30 AWG Sliver Plated Copper Lead Wires With Etched TFE Telfon Insulation, Thermally Conductive Epoxy Coating 12.7mm +/-3.3mm (0.50Ó +/-0.13Ó) 76.2mm +/-3.3mm (3.00Ó +/-3.13Ó) 2.413mm (0.095Ó) Max. Dia. Example: BetaCURVE Series II Part Number 10K 3 A 1 I A Tolerance Classification Insulated Lead Wires BetaCURVE Series Epoxy Coated Material Curve.

100K6A1ID Features

* Rapid Time Response (1 second typical in liquids).

* DC (Dissipation Constant) = 0.85mW/ oC typical in still air at 25oC.

* Min./Max. Temperature Exposure = -80 to 150oC.

* Available in custom probe assemblies.

* Proven Stability and Reliability.

* Teflon Insulated lead

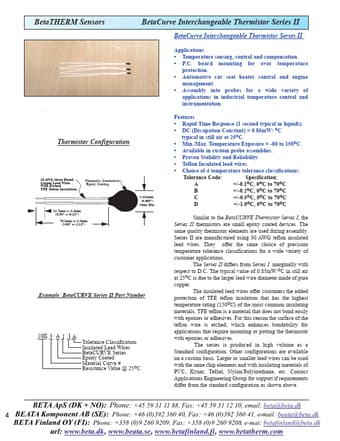

3K3A1IA-xx.pdf

100K6A1ID Datasheet Preview — This datasheet PDF includes multiple part numbers: 100K6A1ID, 3K3A1IA. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

100K6A1ID, 3K3A1IA

Manufacturer:

BetaTHERM

File Size:

215.22 KB

Description:

Chip thermistors.

Note:

This datasheet PDF includes multiple part numbers: 100K6A1ID, 3K3A1IA.
Please refer to the document for exact specifications by model.
