2.2K3A1W2, 3K3A1W2 Datasheet - BetaTHERM

2.2K3A1W2 - Chip Thermistors

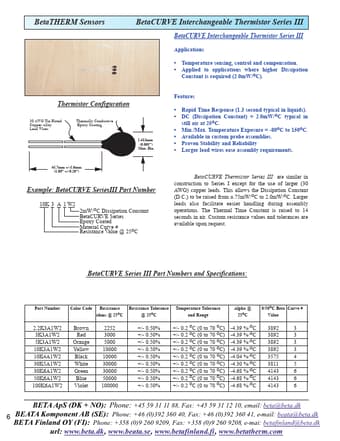

BetaTHERM Sensors BetaCURVE Interchangeable Thermistor Series III BetaCURVE Interchangeable Thermistor Series III Applications Temperature sensing, control and compensation.

Applied to applications where higher Dissipation Constant is required (2.0mW/oC).

Thermistor Configuration 30 AWG Tin Plated Copper Alloy Lead Wires Thermally Conductive Epoxy Coating 2.413mm (0.095Ó) Max.

Dia.

45.7mm +/-5.0mm (1.80Ó +/-0.20Ó) Example: BetaCURVE SeriesIII Part Number 10K 3 A 1 W2 2mW/oC

2.2K3A1W2 Features

* Rapid Time Response (1.3 second typical in liquids).

* DC (Dissipation Constant) = 2.0mW/oC typical in still air at 25oC.

* Min./Max. Temperature Exposure = -80oC to 150oC.

* Available in custom probe assemblies.

* Proven Stability and Reliability

* Larger lead wires ease a

3K3A1W2-xx.pdf

This datasheet PDF includes multiple part numbers: 2.2K3A1W2, 3K3A1W2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2.2K3A1W2, 3K3A1W2

Manufacturer:

BetaTHERM

File Size:

207.14 KB

Description:

Chip thermistors.

Note:

This datasheet PDF includes multiple part numbers: 2.2K3A1W2, 3K3A1W2.
Please refer to the document for exact specifications by model.
