50K6A1B Datasheet - BetaTHERM

50K6A1B Chip Thermistors

BetaTHERM Sensors BetaCurve Interchangeable Thermistor Series I Thermistor Configuration 32 AWG Tin Plated Copper Alloy Lead Wires Thermally Conductive Epoxy Coating 2.413mm (0.095Ó) Max. Dia. 76.2mm +/-3.3mm (3.00Ó +/-0.13Ó) Example: BetaCURVE Series I Part Number 10K 3 A 1 A Tolerance Classification BetaCURVE Series Epoxy Coated Material Curve # Resistance Value @ 25oC BetaCurve Interchangeable Thermistor Series I Applications Temperature sensing, control and compensation. .

50K6A1B Features

* Rapid Time Response (1 second typical in liquids).

* DC (Dissipation Constant) = 0.75mW/oC typical in still air at 25oC.

* Min./Max. Temperature Exposure = -80oC to 150oC.

* Available in custom probe assemblies.

* Proven Stability and Reliability.

* Alloy Lead Wires for red

50K6A1B Datasheet (303.10 KB)

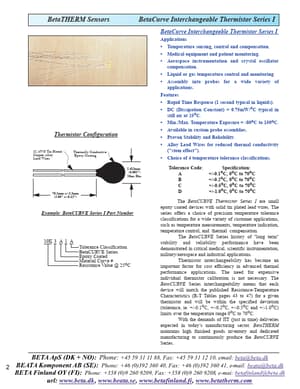

50K6A1B Datasheet Preview — Preview of 50K6A1B PDF

Datasheet Details

Part number:

50K6A1B

Manufacturer:

BetaTHERM

File Size:

303.10 KB

Description:

Chip thermistors.
