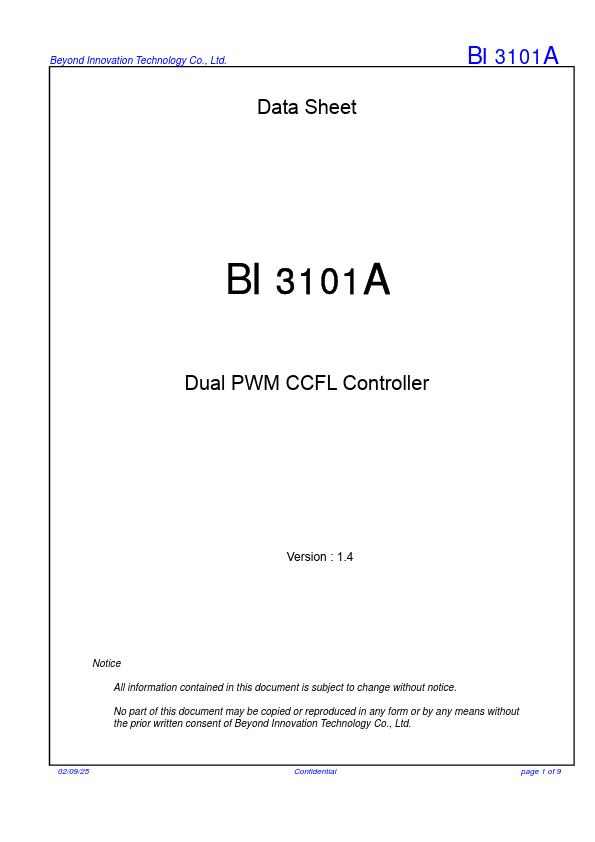

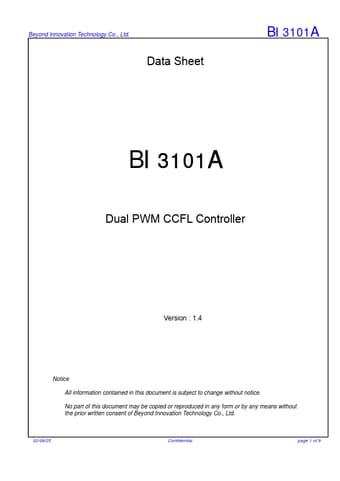

Part number:
BI3101A
Manufacturer:
Beyond Innovation Technology
File Size:
221.17 KB
Description:
Dual pwm ccfl controller.
Datasheet Details
To aim at the Cold Cathode Fluorescent Lamp (CCFL) applications, the Bi3101A integrated all functions required in a single 16-pin chip.
The chip provides 2 fully functioned PWM control circuit both with the true lamp current feedback.
By setting the required time for striking the lamp through SST (

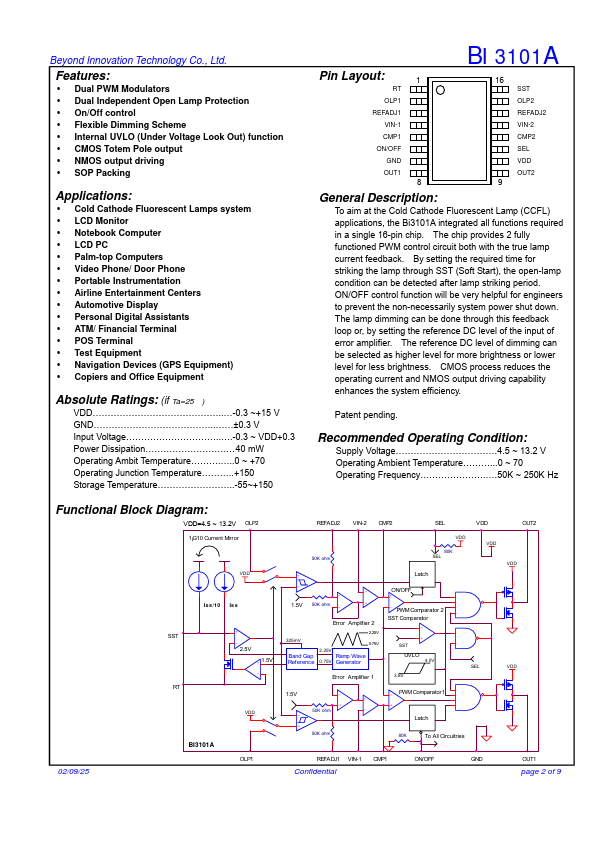

BI3101A Features
* Dual PWM Modulators Dual Independent Open Lamp Protection On/Off control Flexible Dimming Scheme Internal UVLO (Under Voltage Look Out) function CMOS Totem Pole output NMOS output driving SOP Packing Applications: Cold Cathode Fluorescent Lamps system LCD Monitor Notebook Computer LCD PC Palm-top C
Datasheet Details
BI3101A
Beyond Innovation Technology
221.17 KB
Dual pwm ccfl controller.
