BC127 Datasheet - BlueCreation

BC127 Fully Certified Bluetooth Version 4.0 Audio Module

BC126 is a highly flexible, low power, small form factor Bluetooth Version 4.0 Certified Audio module. It comes preloaded with BlueCreation Melody software, and is ideal for developers who want to quickly and cost effectively integrate Bluetooth functionality into their products. Block Diagram Blu.
C 126 BlueCreation BC126 BC127 Fully Certified Bluetooth Version 4.0 Audio Module Key Specifications Bluetooth Certified 4.0 Audio module Dual Mode: Bluetooth and Bluetooth Low Energy (BLE) Backwards compatible with 1.1, 2.0, 2.1 + EDR and 3.0 Embedded Bluetooth Protocol Stack Supports HFP, A2DP, AVRCP, PBAP and SPP Supports IAP1/IAP2 profiles for connection to iOS devices and Apps Simple UART and GPIO interface for command and control Can connect to external Codecs with I2S, PCM, SPDIF inter.

BC127 Features

* 01N J7 VBUS/VBAT 1 3 U4 XC6204B332MR VIN VOU

BC127 Datasheet (1.72 MB)

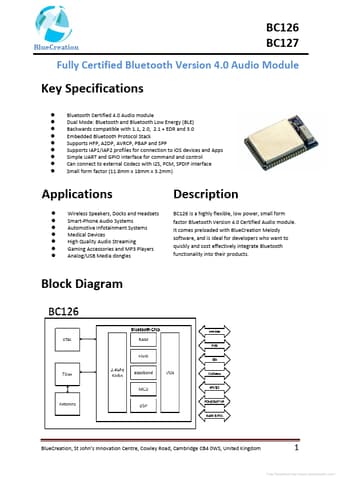

Preview of BC127 PDF
BC127 Datasheet Preview Page 2 BC127 Datasheet Preview Page 3

Datasheet Details

Part number:

BC127

Manufacturer:

BlueCreation

File Size:

1.72 MB

Description:

Fully certified bluetooth version 4.0 audio module.
