MC78L10A - 3-TERMINAL 0.1A NEGATIVE VOLTAGE REGULATORS

MC78L10A Description

Boca Semiconductor Corp.(BSC) MC78LXXA (LM78LXX, KA78LXXA) FIXED VOLTAGE REGULATOR (POSITIVE) 3-TERMINAL 0.1A POSITIVE VOLTAGE REGULATORS The MC78.

MC78L10A Features

* Maximum Output Current of 100mA
* Output Voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V
* Thermal Overload Protection
* Short Circuit Current Limiting
* Output Voltage Offered in ± 5% Tolerance 1: Output 2: GND 3: Input 8 SOP 1: Output 2: GND 3: GND

📥 Download Datasheet

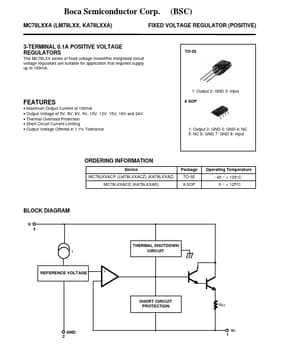

Preview of MC78L10A PDF
datasheet Preview Page 2 datasheet Preview Page 3
