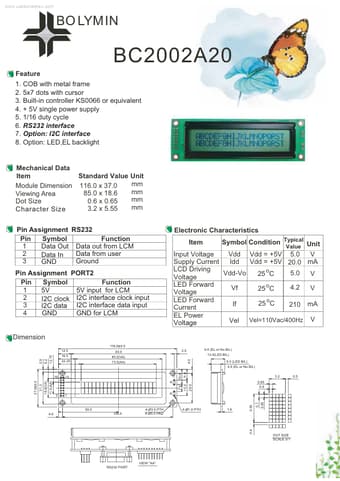

BO LYMIN
BC2002A20
Feature
1. COB with metal frame 2. 5x7 dots with cursor 3. Built-in controller KS0066 or equivalent 4. + 5V single power supply 5. 1/16 duty cycle 6. RS232 interface 7. Option: I2C interface 8. Option: LED,EL backlight
Mechanical Data Item Standard Value Module Dimension 116.0 x 37.0 85.0 x 18.6 Viewing Area 0.6 x 0.65 Dot Size 3.2 x 5.55 Character Size
Unit mm mm mm mm Electronic Characteristics Symbol Condition Typical Unit Value Input Voltage Vdd Vdd = +5V 5.0 V Supply Current Idd Vdd = +5V 20.0 mA LCD Driving 5.0 Vdd-Vo V 25 oC Voltage LED Forward 4.
