GST5009-1LF, GST5007LF Datasheet - Bothhand USA

GST5009-1LF 1000 BASE-T MAGNETICS MODULES

1000 BASE-T MAGNETICS MODULES z Designed for long haul gigabit Ethernet 1000 BASE-T, full duplex applications. z Supports 4 pairs of category 5 UTP cable. z Cable interface for isolation and low common mode emissions. z Compliant with IEEE 802.3ab standard for 1000 BASE-T. z Comply with ROHS & Halogen Free requirements. z Operating temperature range: 0 to +70 . z Storage temperature range: -25 to +85 . BOTHHAND USA Page 1 of 6 Part Number GS5007 HF GS5008 HF GS5008M1 HF GS5009 HF GST5007 LF GS.

GST5007LF-BothhandUSA.pdf

This datasheet PDF includes multiple part numbers: GST5009-1LF, GST5007LF. Please refer to the document for exact specifications by model.

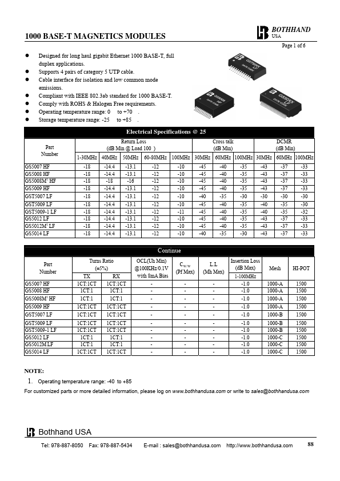

GST5009-1LF Datasheet Preview Page 2 GST5009-1LF Datasheet Preview Page 3

Datasheet Details

Part number:

GST5009-1LF, GST5007LF

Manufacturer:

Bothhand USA

File Size:

852.27 KB

Description:

1000 base-t magnetics modules.

Note:

This datasheet PDF includes multiple part numbers: GST5009-1LF, GST5007LF.
Please refer to the document for exact specifications by model.
