PT231 - ISDN S-Interface Isolation Transformers

Features

  • Designed for isolation between line card.
  • Weight - 4 g.
  • Operating temperature 0 °C to +70 °C.
  • Lead free version available (see How to and terminal Meets CCITT 1.430 when chip pairs and transformers are used Low leakage inductance 2.0 kVrms HIPOT PRI/SEC 60 dB min. longitudinal balance 10 kHz to 300 kHz.
  • R Order).
  • Lead free versions are RoHS compliant.

📥 Download Datasheet

Datasheet preview – PT231

Datasheet Details

Part number PT231
Manufacturer Bourns
File Size 150.24 KB
Description ISDN S-Interface Isolation Transformers
Datasheet download datasheet PT231 Datasheet
Additional preview pages of the PT231 datasheet.

📁 Similar Datasheet

  • PT2310 - Volume Controller IC (Princeton Technology)
  • PT2311 - Four-channel Digital Control Audio Processor Utilizing CMOS Technology (Princeton Technology)
  • PT2312 - 4-Channel Audio Processor (Princeton Technology)
  • PT2312E - Stereo Audio Processor (Princeton Technology)
  • PT2313 - three-input four output digital control channel audio processor (ETC)
  • PT2313 - 4-Channel Audio Processor (Princeton Technology Corp)
  • PT2313E - Stereo Audio Processor (Princeton Technology)
  • PT2313H - 4-Channel Audio Processor (Princeton Technology)
  • PT2313L - 4-Channel Audio Processor (Princeton Technology Corp)
  • PT2314 - 4-Channel Input Audio Processor (Princeton Technology Corp)
Other Datasheets by Bourns Electronic Solutions

    Full PDF Text Transcription

    Click to expand full text

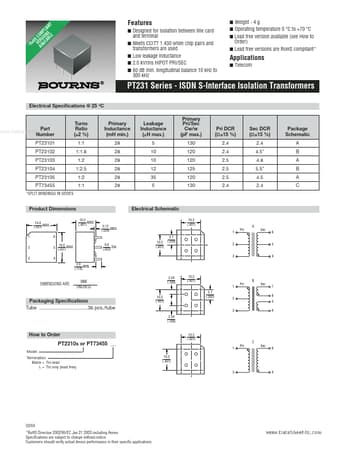

    oH V SC AV ER OM AI SIO PL LA N IA BL S NT E Features ■ Designed for isolation between line card ■ ■ ■ ■ ■ Weight - 4 g ■ Operating temperature 0 °C to +70 °C ■ Lead free version available (see How to and terminal Meets CCITT 1.430 when chip pairs and transformers are used Low leakage inductance 2.0 kVrms HIPOT PRI/SEC 60 dB min. longitudinal balance 10 kHz to 300 kHz *R Order) ■ Lead free versions are RoHS compliant* Applications ■ Telecom PT231 Series - ISDN S-Interface Isolation Transformers Electrical Specifications @ 25 °C Primary Pri/Sec Cw/w (pF max.) 130 120 120 125 120 130 www.DataSheet4U.com Part Number Turns Ratio (±2 %) 1:1 1:1.8 1:2 1:2.5 1:2 1:1 Primary Inductance (mH min.) 28 28 28 28 28 28 Leakage Inductance (µH max.) 5 10 10 12 35 5 Pri DCR (Ω±15 %) 2.4 2.4 2.
