PT66004 - ISDN S-Interface Transformer

Datasheet Summary

Features

  • Designed for G.703 codirectional.
  • Lead free versions are RoHS compliant.
  • interface.
  • Matched to leading transceiver ICs.
  • Through-hole unit.
  • Lead free version available (see How to Order).
  • R.

📥 Download Datasheet

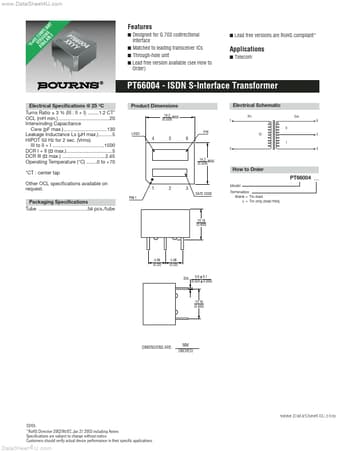

Datasheet preview – PT66004

Datasheet Details

Part number PT66004
Manufacturer Bourns Electronic Solutions
File Size 245.69 KB
Description ISDN S-Interface Transformer
Datasheet download datasheet PT66004 Datasheet
Additional preview pages of the PT66004 datasheet.

📁 Similar Datasheet

  • PT6600 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR (Power Trends)
  • PT6601 - LCD Driver IC (Princeton Technology Corp)
  • PT6601 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR (Power Trends)
  • PT6602 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR (Power Trends)
  • PT6603 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR (Power Trends)
  • PT6604 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR (Power Trends)
  • PT6605 - 3 to 5 series lithium-ion/lithium-polymer battery secondary protection (Powtech)
  • PT6605 - 9AMP ADJUSTABLE INTEGRATED SWITCHING REGULATOR (Power Trends)
  • PT6605 - lithium-ion/lithium-polymer battery monitoring chip (ChipSourceTek)
  • PT6605S - 3 to 5 series lithium-ion/lithium-polymer battery secondary protection (Powtech)
Other Datasheets by Bourns Electronic Solutions

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com oH V SC AV ER OM AI SIO PL LA N IA BL S NT E Features ■ Designed for G.703 codirectional ■ Lead free versions are RoHS compliant* interface ■ Matched to leading transceiver ICs ■ Through-hole unit ■ Lead free version available (see How to Order) *R Applications ■ Telecom PT66004 - ISDN S-Interface Transformer Electrical Specifications @ 25 °C Turns Ratio ± 3 % (III : II + I) ........1:2 CT* OCL (mH min.)......................................20 Interwinding Capacitance Cww (pF max.)................................130 Leakage Inductance Ls (µH max.)..........5 HIPOT 50 Hz for 2 sec. (Vrms) III to II + I ......................................1500 DCR I + II (Ω max.)..................................5 DCR III (Ω max.) ................................2.
