LSP0600AJR-S - LED Shunt Protector

This page provides the datasheet information for the LSP0600AJR-S, a member of the LSP1800AJR-S LED Shunt Protector family.

Datasheet Summary

Features

  • Fast switching.
  • Automatic reset.
  • SMA package.
  • Suitable for industrial lighting environments.
  • RoHS compliant.

📥 Download Datasheet

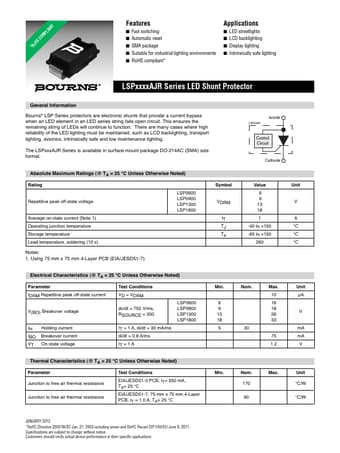

Datasheet preview – LSP0600AJR-S

Datasheet Details

Part number LSP0600AJR-S
Manufacturer Bourns Electronic
File Size 332.80 KB
Description LED Shunt Protector
Datasheet download datasheet LSP0600AJR-S Datasheet
Additional preview pages of the LSP0600AJR-S datasheet.

📁 Similar Datasheet

  • LSP05 - LED Lighting Surge Protection (Littelfuse)
  • LSP05120P - LED Lighting Surge Protection (Littelfuse)
  • LSP05240LLP - LED Lighting Surge Protection (Littelfuse)
  • LSP05240P - LED Lighting Surge Protection (Littelfuse)
  • LSP05277P - LED Lighting Surge Protection (Littelfuse)
  • LSP05347P - LED Lighting Surge Protection (Littelfuse)
  • LSP05480LLP - LED Lighting Surge Protection (Littelfuse)
  • LSP05480P - LED Lighting Surge Protection (Littelfuse)
  • LSP05GI - LED Lighting Surge Protection Module (Littelfuse)
  • LSP10 - Surge Protection Module (Littelfuse)
Other Datasheets by Bourns Electronic

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr PL IA NT Features ■ Fast switching ■ Automatic reset ■ SMA package ■ Suitable for industrial lighting environments ■ RoHS compliant* Applications ■ LED streetlights ■ LCD backlighting ■ Display lighting ■ Intrinsically safe lighting *R oH S CO M LSPxxxxAJR Series LED Shunt Protector General Information Bourns® LSP Series protectors are electronic shunts that provide a current bypass when an LED element in an LED series string fails open circuit. This ensures the remaining string of LEDs will continue to function. There are many cases where high reliability of the LED lighting must be maintained, such as LCD backlighting, transport lighting, avionics, intrinsically safe and low maintenance lighting.
