4116R
Features
- Ro HS pliant- versions available (see How to Order “Termination” option)
- patible with automatic insertion equipment
- Superior package integrity
- Now available with improved tolerance to ±0.5 %
For information on specific applications, download Bourns’ application notes:
- DRAM Applications
- Dual Terminator Resistor Networks
- R/2R Ladder Networks
- SCSI Applications

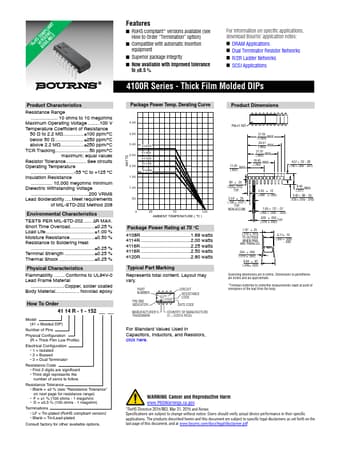

4100R Series
- Thick Film Molded DIPs
Product Characteristics
Resistance Range 10 ohms to 10 megohms
Maximum Operating Voltage 100 V Temperature Coefficient of Resistance
50 Ω to 2.2 MΩ ±100 ppm/°C below 50 Ω ±250 ppm/°C above 2.2 MΩ ±250 ppm/°C TCR Tracking 50 ppm/°C maximum; equal values Resistor Tolerance See circuits Operating Temperature
-55 °C to +125 °C Insulation Resistance
10,000 megohms minimum Dielectric Withstanding Voltage...
