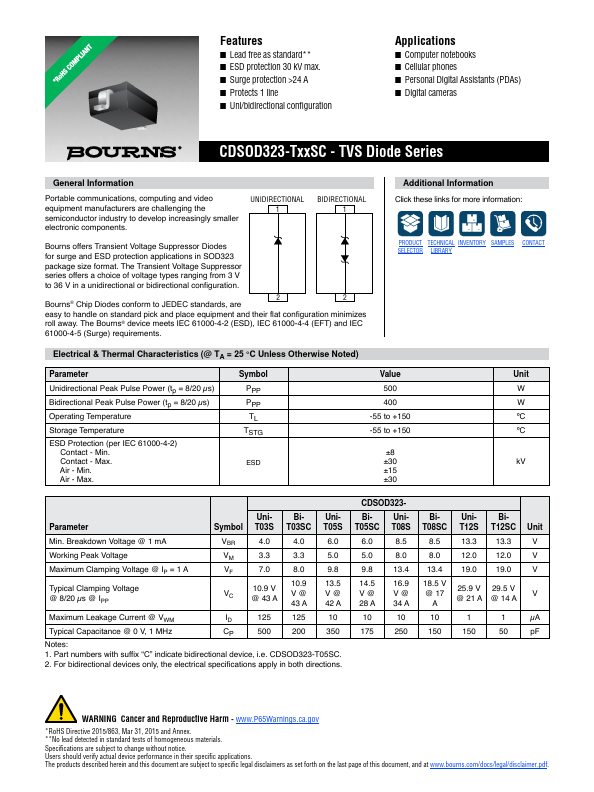

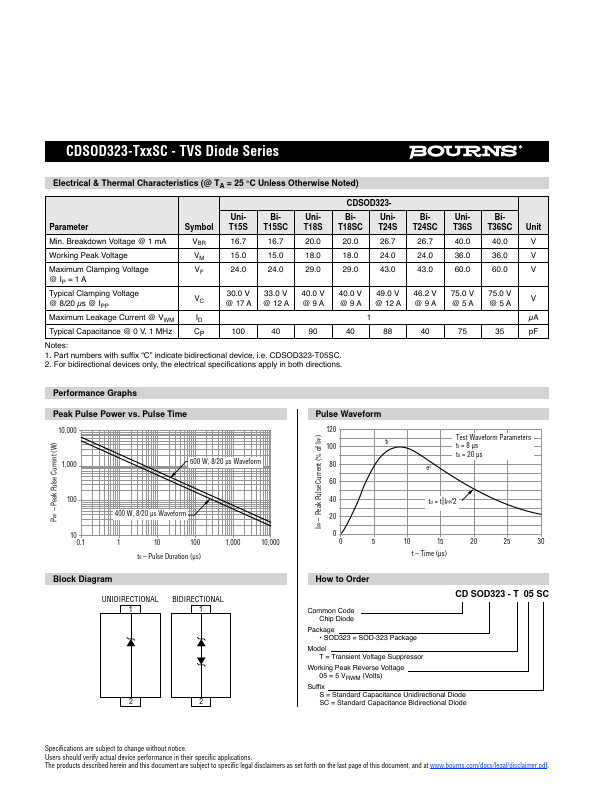

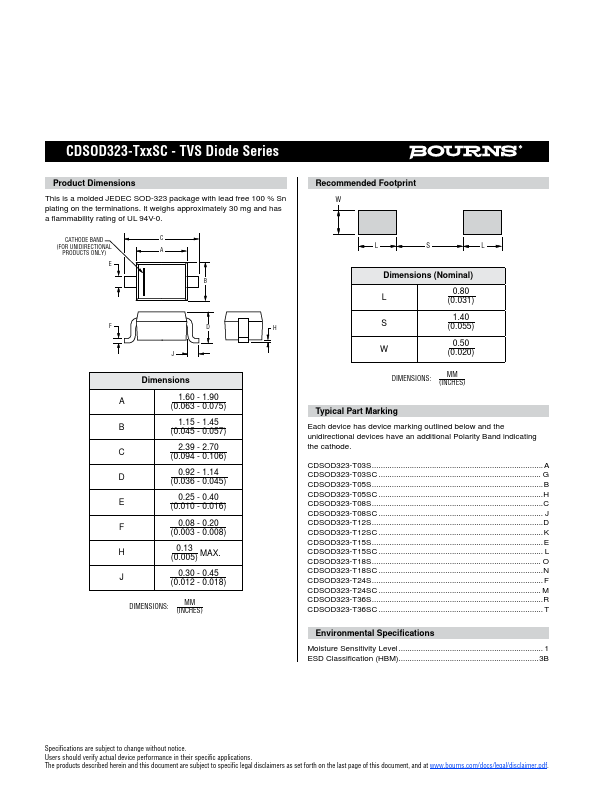

Bourns manufacturer logo Part number: CDSOD323-T05SC Manufacturer: Bourns File Size: 172.11kb Download: 📄 Datasheet Description: Tvs diode.
CDSOD323-T05S - TVS Diode (Bourns) **RoHS COMPLIANT Features ■ Lead free as standard* ■ ESD protection 30 kV max. ■ Surge protection >24 A ■ Protects 1 line ■ Uni/bidirectional configur.
CDSOD323-T05 - TVS Diode Array (Bourns) *RoHS COMPLIANT Features ■ Lead free as standard (RoHS pliant*) ■ Protects 1 line or 1 I/O port ■ Bidirectional configuration ■ ESD protection >40.
CDSOD323-T05C - TVS Diode Array (Bourns) *RoHS COMPLIANT Features ■ Lead free as standard (RoHS pliant*) ■ Protects 1 line or 1 I/O port ■ Bidirectional configuration ■ ESD protection >40.
CDSOD323-T03 - TVS Diode Array (Bourns) *RoHS COMPLIANT Features ■ Lead free as standard (RoHS pliant*) ■ Protects 1 line or 1 I/O port ■ Bidirectional configuration ■ ESD protection >40.
CDSOD323-T03C - TVS Diode Array (Bourns) *RoHS COMPLIANT Features ■ RoHS pliant* ■ Protects one line or one I/O port ■ Bidirectional configuration ■ ESD protection 30 kV max. ■ Low capacit.
CDSOD323-T03S - TVS Diode (Bourns) **RoHS COMPLIANT Features ■ Lead free as standard* ■ ESD protection 30 kV max. ■ Surge protection >24 A ■ Protects 1 line ■ Uni/bidirectional configur.
CDSOD323-T03SC - TVS Diode (Bourns) **RoHS COMPLIANT Features ■ Lead free as standard* ■ ESD protection 30 kV max. ■ Surge protection >24 A ■ Protects 1 line ■ Uni/bidirectional configur.
CDSOD323-T08 - TVS Diode Array (Bourns) *RoHS COMPLIANT Features ■ Lead free as standard (RoHS pliant*) ■ Protects 1 line or 1 I/O port ■ Bidirectional configuration ■ ESD protection >40.
CDSOD323-T08C - TVS Diode Array (Bourns) *RoHS COMPLIANT Features ■ Lead free as standard (RoHS pliant*) ■ Protects 1 line or 1 I/O port ■ Bidirectional configuration ■ ESD protection >40.
CDSOD323-T08S - TVS Diode (Bourns) **RoHS COMPLIANT Features ■ Lead free as standard* ■ ESD protection 30 kV max. ■ Surge protection >24 A ■ Protects 1 line ■ Uni/bidirectional configur.
