DR334A-253AE, DR334A-113BE - Line Filter

Bourns

Datasheet Details

Part number	DR334A-253AE, DR334A-113BE
Manufacturer	Bourns
File Size	584.19 KB
Description	Line Filter
Datasheet	DR334A-113BE-Bourns.pdf
Note	This datasheet PDF includes multiple part numbers: DR334A-253AE, DR334A-113BE. Please refer to the document for exact specifications by model.

n Bifilar or sector windings n Toroid core, self-shielding, low radiation n Wide EMI suppression frequency range n AEC-Q200 compliant n RoHS compliant.
and Halogen free.

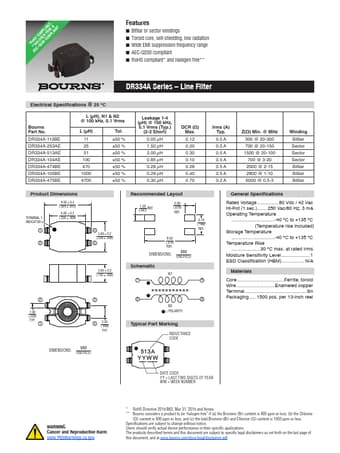

DR334A Series.
Line Filter Electrical Specifications @ 25 °C Bourns Part No. DR334A-113BE DR334A-253AE DR334A-513AE DR334A-104AE DR334A-474BE DR334A-105BE DR334A-475BE L (µH), N1 & N2 @ 100 kHz, 0.1 Vrms L (µH) 11 25 51 100 470 1000 4700 Tol. ±50 % ±50 % ±50 % ±50 % ±50 % ±50 % ±50 % Leakage 1-4 (µH).
