ENC1D-D16-L00256, ENA1J-C28 - Rotary Optical Encoder

Bourns

📥 Download Datasheet

ENC1D-D16-L00256 Datasheet Preview — This datasheet PDF includes multiple part numbers: ENC1D-D16-L00256, ENA1J-C28. Please refer to the document for exact specifications by model.

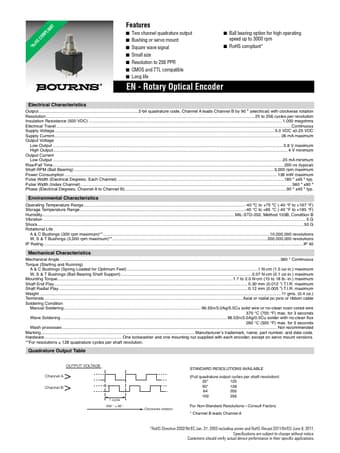

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ENC1D-D16-L00256, ENA1J-C28
Manufacturer	Bourns
File Size	219.07 KB
Description	Rotary Optical Encoder
Datasheet	ENA1J-C28-Y00.pdf
Note	This datasheet PDF includes multiple part numbers: ENC1D-D16-L00256, ENA1J-C28. Please refer to the document for exact specifications by model.

ENC1D-D16-L00256 Product details

Features

Two channel quadrature output.
Bushing or servo mount.
Square wave signal.
Small size.
Resolution to 256 PPR.
CMOS and TTL compatible.
Long life.
Ball bearing option for high operating speed up to 3000 rpm.
RoHS compliant.
EN - Rotary Optical Encoder Electrical Characteristics Output 2-bit quadrature code, Channel A leads Channel B by 90 º (electrical) with clockwise rotation Resolution 25 to 256 cycles per revolution Insulation Resistance (5.
