ENT1D-449-Y00064, ENA1J-C28 Datasheet - Bourns

ENT1D-449-Y00064, ENA1J-C28, Rotary Optical Encoder

*RoHS COMPLIANT .

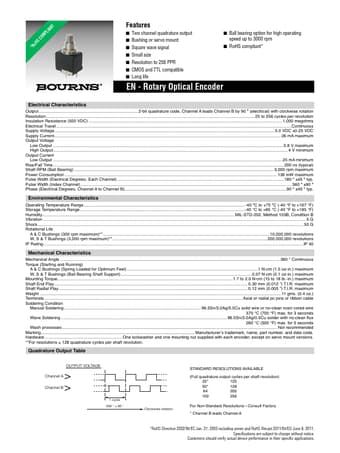

datasheet Preview Page 1 from Datasheet4u.com

ENA1J-C28-Y00.pdf

ENT1D-449-Y00064 Datasheet Preview — This datasheet PDF includes multiple part numbers: ENT1D-449-Y00064, ENA1J-C28. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

ENT1D-449-Y00064, ENA1J-C28

Manufacturer:

Bourns

File Size:

219.07 KB

Description:

Rotary Optical Encoder

Note:

This datasheet PDF includes multiple part numbers: ENT1D-449-Y00064, ENA1J-C28.
Please refer to the document for exact specifications by model.

Features

* Two channel quadrature output
* Bushing or servo mount
* Square wave signal
* Small size
* Resolution to 256 PPR
* CMOS and TTL compatible
* Long life
* Ball bearing option for high operating speed up to 3000 rpm
* RoHS compliant
* EN - Rotary Optical Enco

Applications

* EN - Rotary Optical Encoder Dimensional Drawings 2.54 (.100) TYP. Optional Radial Leads .635 (.025) SQ. 18.5 (.73) 6.35 (.250) 15.88 (.625) 6.342 + .000/
* .0076 DIA. (.2497 + .000/
* .0003) 3/8-32 UNEF 9.525 (.375) 8.636 (.34 ) 1/4-32 UNEF 3.167 + .000/
* .007
